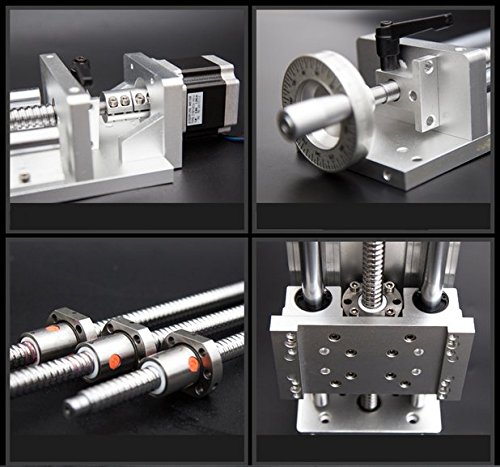

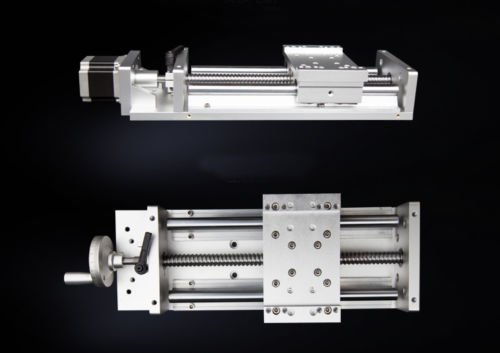

SBR Rails Precision Cross Slide 1605 CNC Ballscrew Linear Slide 100mm-1000mm Linear Stage Slide Module for CNC Router X Y Z Aixs (100mm)

Description

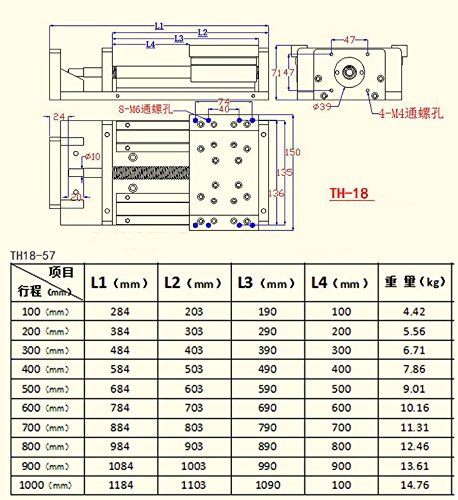

Specification: Material: Aerospace Aluminum 6061 Panel (moving slider) width:150x 90mm Slide height:71mm Pitch can be replaced:10 or 20mm Floor width:135mm Bottom plate thickness:11mm Configuration:Ball screw diameter 16mm,Screw pitch turn around 5mm Repeat positioning accuracy:0.02~0.03mmLoad bearing Load bearing:Horizontal load≤150kg,Vertical load≤50kg Stacking method: can be stacked cross, gantry, three-axis, four-axis variety of stacked Package include: 1x Cross slide
