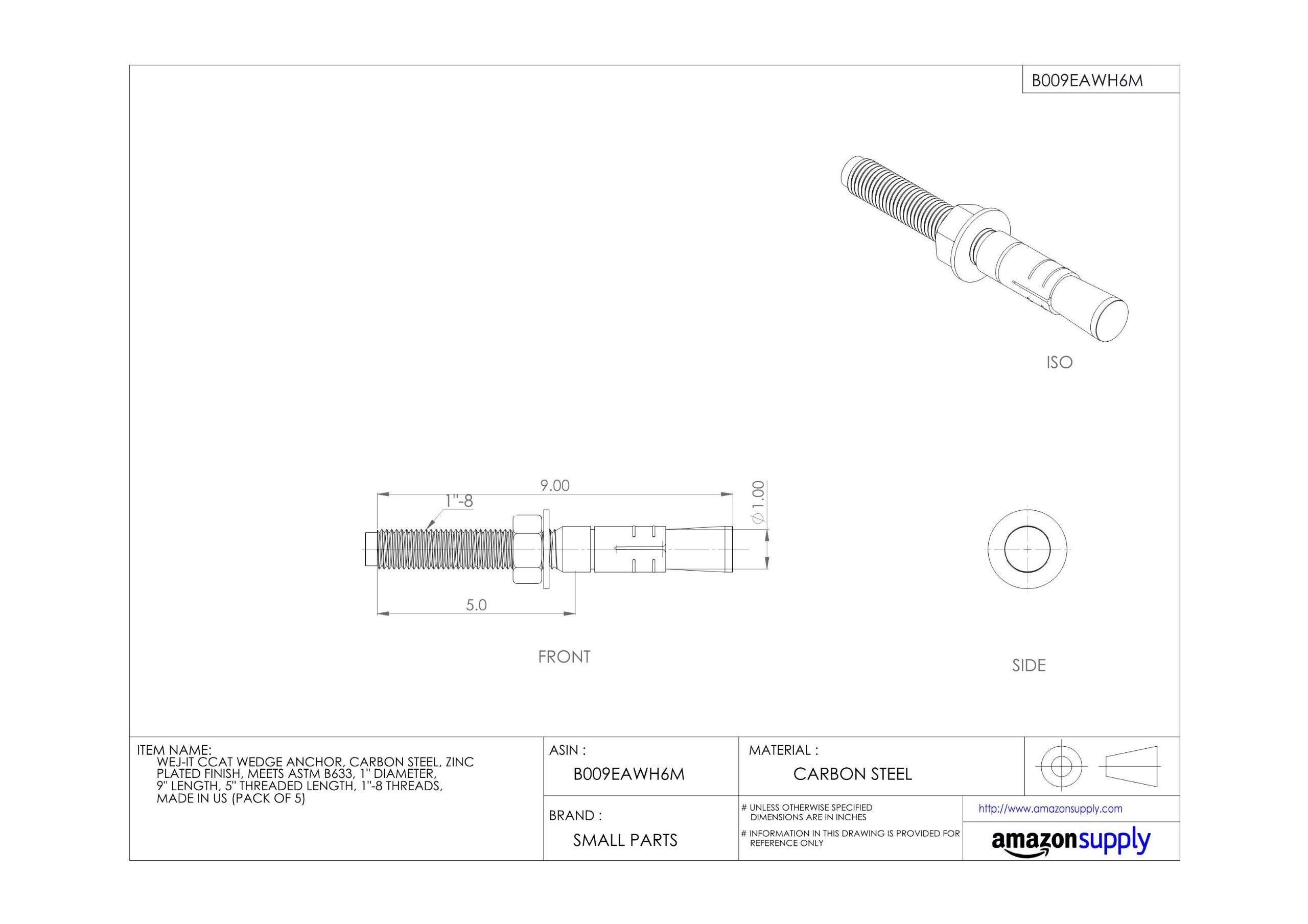

The Wej-It Ankr-TITE CCAT wedge anchor provides a secure hold in cracked concrete as well as uncracked concrete and solid masonry up to 3-3/4" thick, and meets Federal Specification QQZ-325 Type II Class 3 and ICC-ES Report Number ESR-2777 Category 1 design criteria for cracked and uncracked concrete. The anchor consists of a carbon steel body that is zinc-plated for corrosion resistance, a carbon steel washer and nut, and a corrosion-resistant 316 stainless steel clip. It must be installed into a drilled hole with a diameter equal to that of the anchor. The washer lies flush against the mounting surface when the anchor is inserted into the hole, and the nut tightens with a wrench to draw the threaded portion of the anchor up, causing the clip to expand and secure the anchor in place. The clip is round for even distribution of force within the mounting surface for high load capacity. A line marking and length identification code are stamped on the anchor's visible end for post-installation inspection, and the dog point on the opposite end prevents damage during installation. A safety shoulder above the clip provides support when the anchor is under severe strain.SpecificationsUltimate Tensile StrengthAnchor DiameterEffective Embedment Depth2,500-psi Uncracked Concrete2,500-psi Cracked Concrete3/8"2"Not AvailableNot Applicable1/2"2-3/4"4,737 lb.2,616 lb.1/2"5"5,115 lb.3,584 lb.5/8"3-3/8"7,082 lb.5,144 lb.5/8"5-3/4"12,734 lb.6,645 lb.3/4"7"16,607 lb.11,849 lb.Ultimate Shear Strength for Seismic ApplicationsAnchor DiameterEffective Embedment Depth2,500-psi Cracked Concrete3/8"2"Not Applicable1/2"2-3/4"3,239 lb.1/2"5"6,476 lb.5/8"3-3/8"5,055 lb.5/8"5-3/4"8,154 lb.3/4"3-3/4"8,504 lb.3/4"7"11,957 lb.Warning: Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations). For more information, see the manufacturer's literature.Anchors provide reinforcement to fasteners installed in materials that are considered brittle or have insufficient hold such as drywall, concrete, brick, and stone. Anchors provide support through methods such as expansion from within or behind the substrate, or insertion of adhesive compounds into drilled holes.Wej-It Fastening Systems manufactures mechanical and adhesive fasteners for use in concrete and drywall. The company, founded more than 60 years ago, is headquartered in Norwalk, CT.
