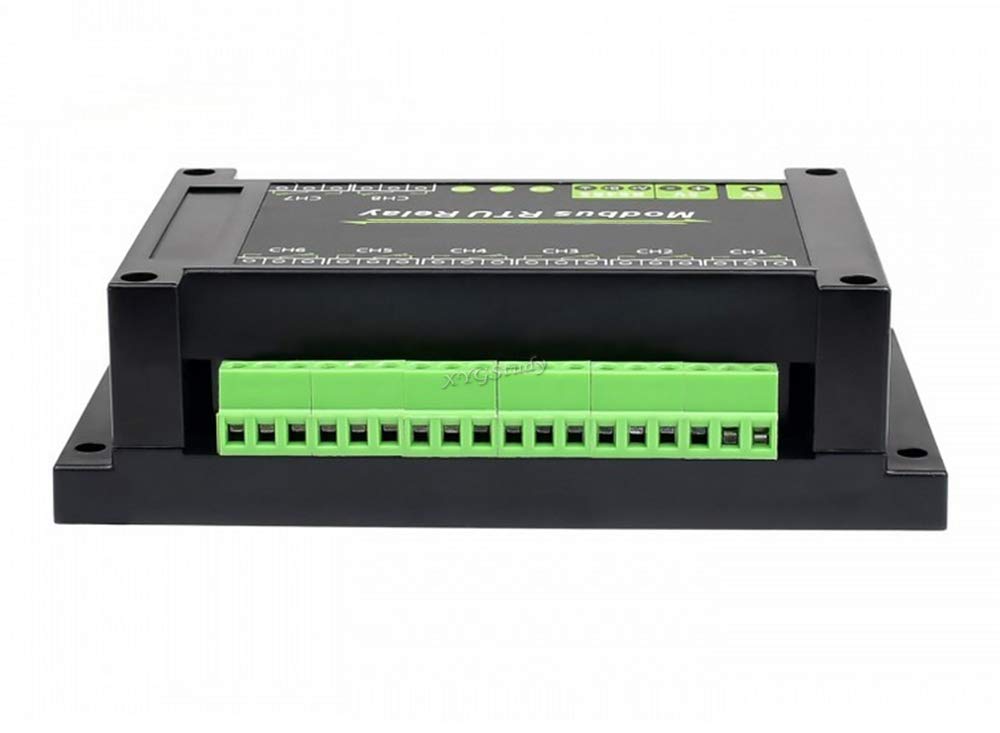

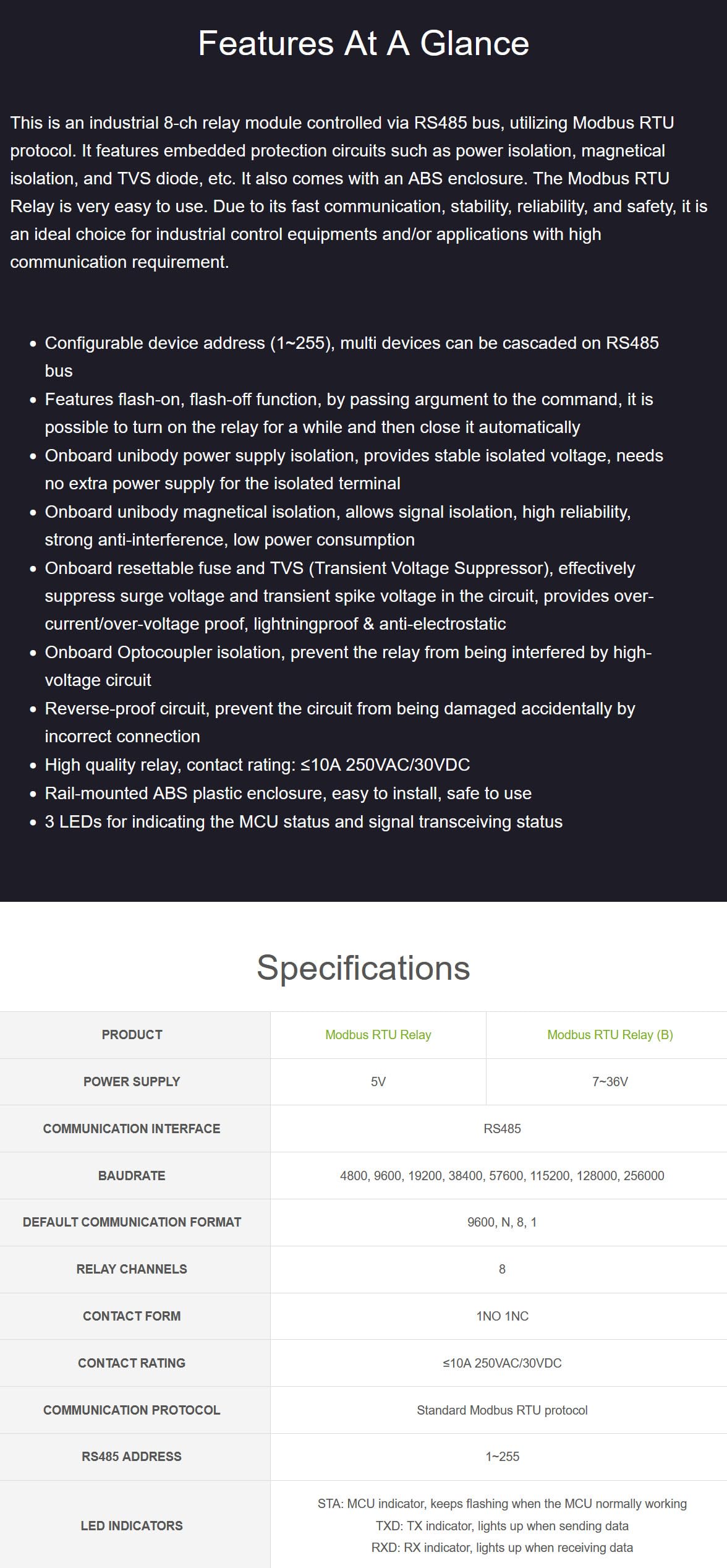

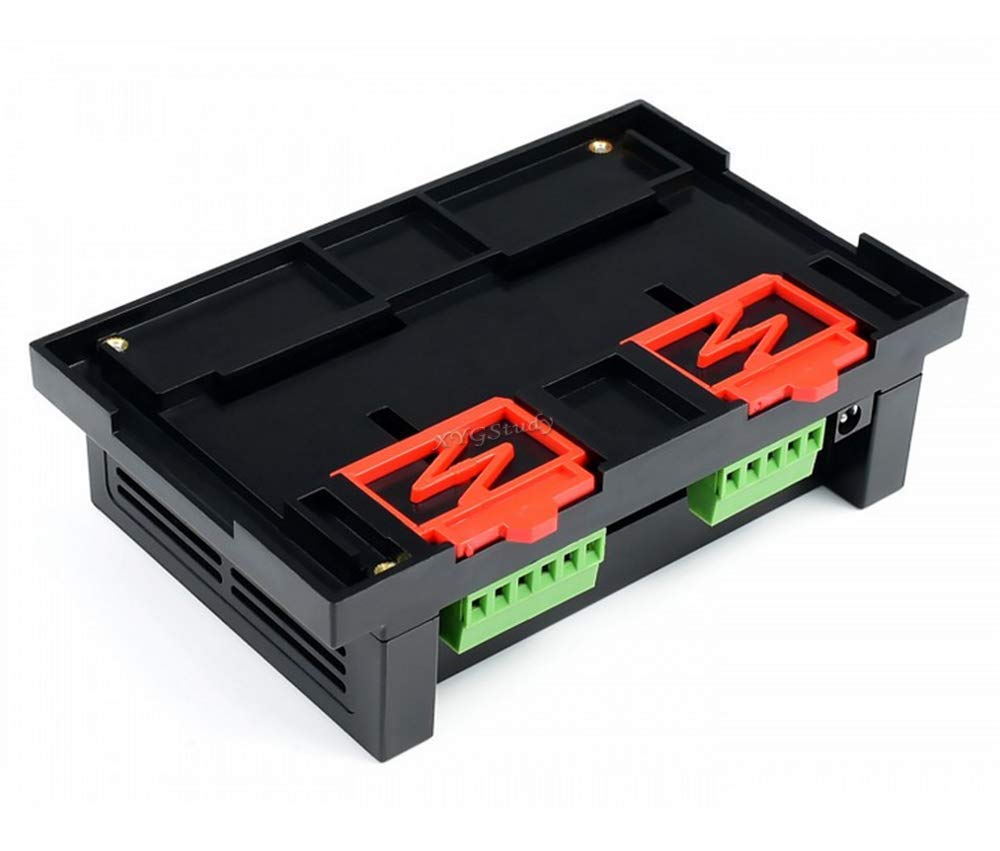

This is an industrial 8-ch relay module controlled via RS485 bus, utilizing Modbus RTU protocol. It features embedded protection circuits such as power isolation, ADI magnetical isolation, and TVS diode, etc. It also comes with an ABS enclosure. The Modbus RTU Relay is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirement. Features Configurable device address (1~255), multi devices can be cascaded on RS485 bus Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic Onboard Optocoupler isolation, prevent interference from external high-voltage circuit connected to the relay Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection High quality relay, contact rating: ≤10A 250VAC/30VDC Rail-mounted ABS plastic enclosure, easy to install, safe to use 3 LEDs for indicating the MCU status and signal transceiving status Package Contains: Modbus RTU Relay x1 Power adapter US plug 5V/2A 5.5/2.1 x1 Power adapter EU head x1 For more resources you may need, pls contact me via message, i will send you then via attachment.
